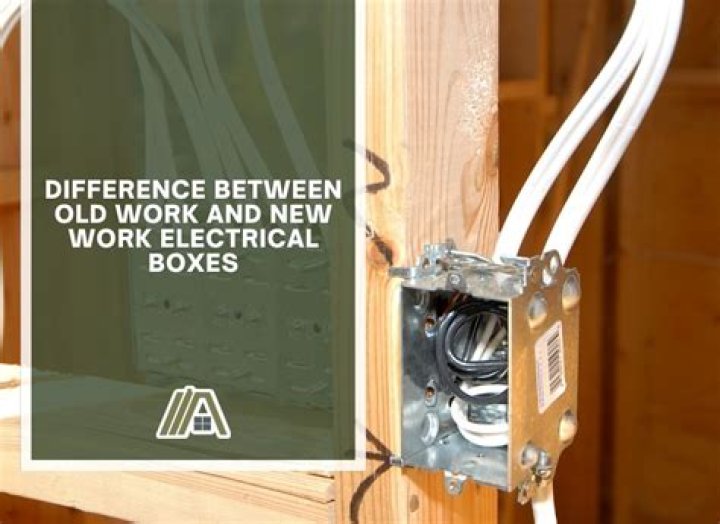

New work boxes, designed to be installed just after the wall is framed but before the surfaces are finished with drywall. They attach to studs. Old work (also called retrofit) boxes, designed to be installed after the walls are finished and are used during remodeling projects. They attach to drywall or plaster.

When would an electrician use a new work box?

2. Heath starts by explaining that new work boxes are used whenever the walls are being opened up for work. This could be in new construction but also in renovations. They come with brackets on the side to nail directly into a stud from the side.

What is new work old work box?

New Work Box Basics

A new work box is an electrical box for light switches, outlets, and other devices that are installed before drywall is installed on the wall studs. The term new work (sometimes new-construction) refers to walls that have not yet been closed in with wallboard.

The purpose/advantage of an old work box is that you use it where there is no stud to attach to. The tabs bind it to the drywall. If you use the tabs then you do not need to screw it to a stud.

What are the different types of electrical boxes?

What to Know About the Various Types of Electrical Boxes
Plastic and metal electrical boxes. Most boxes are either made of plastic or metal. Rectangular boxes. Two-gang, three-gang, and four-gang boxes. Round pan boxes. Junction boxes. Round and octagon boxes. Ceiling fan-rated boxes.

TURN OFF POWER AT THE CIRCUIT BREAKER BOX. Turn off power at the circuit breaker panel box. MARK THE DRYWALL FOR THE NEW BOX. CUT THE DRYWALL. LOOSEN THE OLD OUTLET. FEED THE CABLE TO THE OLD BOX. CONNECT THE WIRES IN THE OLD BOX. MOUNT THE REMODELING BOX. WIRE THE NEW OUTLET.

Should electrical boxes be flush with drywall?

The front edge of the box must be flush with the finished wall surface, usually 1/2-inch-thick drywall. Some boxes have depth gauges. You can use a scrap of drywall to position the box.

Do you install outlets before drywall?

Yes you can wire them up first. It’s not ideal for the drywallers but if they are any good it won’t be an issue. If you leave them wired, unscrew the outlets/switches and put the top in the box with the bottom sticking straight out or vice versa so the drywall cal be sealed around the box better.

An old work box will support up to 50 pounds of weight as long as it is attached to a support, however, if it is only attached to the sheetrock then the weight-bearing limit is zero.

How do junction boxes work?

Junction Box Wiring Basics

Essentially, a junction box houses wire connections in order to split off power from a single source to multiple outlets. For instance, a junction box might contain one wire power source that is connected through multiple wires to power several different lights.
