noun Optics, Photography. a composite diaphragm with a central aperture readily adjustable for size, used to regulate the amount of light admitted to a lens or optical system. Also called iris.

What is the function of the iris diaphragm on the microscope?

The iris diaphragm regulates how much light is on the object being viewed, and the condenser focuses light into an objective as it moves up and down enhancing specimen contrast. Name the three main objectives used on a clinical microscope. How should a microscope be stored when not in use?

What is the function of the iris diaphragm to what part of the human would you compare it?

The iris of the eye functions like the diaphragm of a camera, controlling the amount of light reaching the back of the eye by automatically adjusting the size of the pupil (aperture). The eye’s crystalline lens is located directly behind the pupil and further focuses light.

What is the iris?

(I-ris) The colored tissue at the front of the eye that contains the pupil in the center. The iris helps control the size of the pupil to let more or less light into the eye. Enlarge.

What happens when the iris diaphragm is adjusted?

In light microscopy the iris diaphragm controls the size of the opening between the specimen and condenser, through which light passes. Closing the iris diaphragm will reduce the amount of illumination of the specimen but increases the amount of contrast.

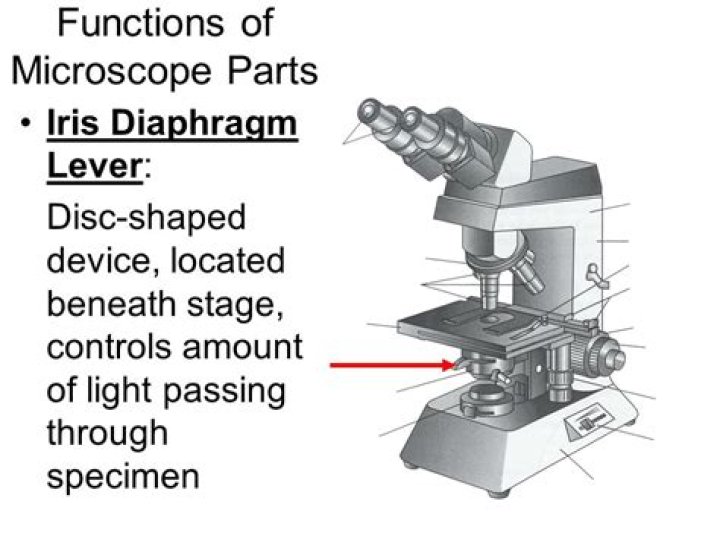

Where is the iris diaphragm lever on a microscope?

Iris Diaphragm controls the amount of light reaching the specimen. It is located above the condenser and below the stage. Most high quality microscopes include an Abbe condenser with an iris diaphragm.

Why is adjusting iris diaphragm important?

For creating the best possible contrast in the image, the iris diaphragm can be opened to make the image brighter or closed to dim the light. These adjustments are subjective and should suit the preferences of the person viewing the image.

What is the purpose of adjusting the diaphragm?

This controls the size of the illuminated field. The field diaphragm control is located around the lens located in the base. Fine Adjustment Knob – This knob is inside the coarse adjustment knob and is used to bring the specimen into sharp focus under low power and is used for all focusing when using high power lenses.

When should the iris diaphragm be used?

The iris diaphragm should be used to adjust amount of light needed to improve contrast. Correct the statement. The condenser should be in the lowest position to the focus the most light on the specimen. The condenser is raised completely up to the stage to focus the most light on the specimen.

How do you use a diaphragm on a microscope?

Switch on your microscope’s light source and then adjust the diaphragm to the largest hole diameter, allowing the greatest amount of light through. If you have an iris diaphragm, slide the lever till the most light comes through.
