Ultimately, microcontrollers and microprocessors are different ways of organizing and optimizing a computing system based on a CPU. While a microcontroller puts the CPU and all peripherals onto the same chip, a microprocessor houses a more powerful CPU on a single chip that connects to external peripherals.

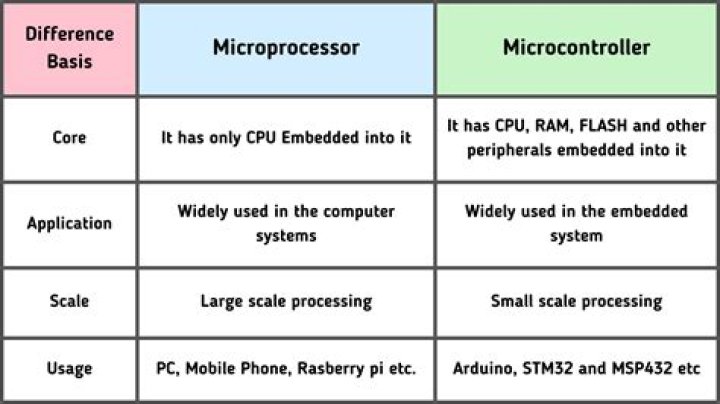

What is the difference between a microprocessor & microcontroller explain with diagram and examples?

The microprocessor is useful in Personal Computers whereas Micro Controller is useful in an embedded system. The microprocessor uses an external bus to interface to RAM, ROM, and other peripherals, on the other hand, Microcontroller uses an internal controlling bus.

Is 8051 a microcontroller or microprocessor?

The INTEL 8051 is an 8 bit microcontroller with 128 byte internal RAM and 4K bytes internal ROM. The 8051 is a 40 pin IC available in Dual in line package (DIP) and it requires a single power supply of +5V.

What is the 8085 microprocessor?

The Intel 8085 (“eighty-eighty-five”) is an 8-bit microprocessor produced by Intel and introduced in March 1976. It is a software-binary compatible with the more-famous Intel 8080 with only two minor instructions added to support its added interrupt and serial input/output features.

What is the difference between microprocessor and microcontroller Wikipedia?

It contains an integrated processor, memory (a small amount of RAM, program memory, or both), and programmable input/output peripherals, which are used to interact with things connected to the chip. A microcontroller is different than a microprocessor, which only contains a CPU (the kind used in a Personal Computer).

Is Arduino a microcontroller?

The Arduino is an open-source electronics platform based on easy-to-use hardware and software used to build electronics projects. All Arduino boards have one thing in common which is a microcontroller. With the Arduino, you can design and build devices that can interact with your surroundings.

Which architecture is used in 8051?

The 8051 is CISC based architecture. It follows the Harvard architecture principles of memory interface, so has separate program & data memory.

What are the features of 8051?

Features of 8051 Microcontroller
4KB bytes on-chip program memory (ROM)128 bytes on-chip data memory (RAM)Four register banks.128 user defined software flags.8-bit bidirectional data bus.16-bit unidirectional address bus.32 general purpose registers each of 8-bit.16 bit Timers (usually 2, but may have more or less)

Which is best microprocessor or microcontroller?

If you need access to large amounts of really fast memory then a microprocessor is likely your best option. A microcontroller is already embedded with memory so the memory choices are fewer than with a microprocessor. The maximum amount of FLASH memory available with most microcontrollers is usually around 2MB.

Which is faster microprocessor or microcontroller?

As all the peripheral of microcontroller are on single chip it is compact while microprocessor is bulky. Processing speed of microcontrollers is about 8 MHz to 50 MHz, but in contrary processing speed of general microprocessors is above 1 GHz so it works much faster than microcontrollers.

How many pins are there in 8051 microcontroller?

8051 microcontroller was designed by Intel in 1981. It is an 8-bit microcontroller. It is built with 40 pins DIP (dual inline package), 4kb of ROM storage and 128 bytes of RAM storage, 2 16-bit timers. It consists of are four parallel 8-bit ports, which are programmable as well as addressable as per the requirement.

What are the flags in 8085?

8085 has five flags. Sign flag, zero flag, Auxiliary carry flag, Parity flag and Carry flag.

What is the difference in the number of flags between 8085 and 8086?

Whereas 8086 comparatively holds a very large number of processors in it. 8085 supports a single mode of operation, while 8086 supports two operating modes, minimum and maximum mode. There exist total 5 flags (i.e., sign, zero, auxiliary carry, parity and carry flag) in 8085 microprocessor.

What is microprocessor PDF?

A microprocessor is a controlling unit of a micro-computer, fabricated on a small chip capable of performing Arithmetic Logical Unit (ALU) operations and communicating with the other devices connected to it.
