For a 5/16-in. lag bolt, that works out to be about 7/32 in. The unscientific approach that I’ve always used is just lining up drill bits with the threaded part of the lag to find the one that is closest to the minor diameter.

What size hole do you drill to tap a 5/16 bolt?

What Size Drill Bit for 5/16″ Tap? The best overall size drill bit for the 5/16″-18 tap is 17/64″ drill bit, which corresponds to an F drill bit.

Should you drill pilot holes for lag bolts?

Unless specified, the lag bolts we make will have a semi-cone point, not a gimlet point typically supplied on smaller import product. Full points are not needed for large diameter lag bolts, because pilot holes should be drilled to ensure the heads do not break when torque is applied.

How do you drill a pilot hole for a lag bolt?

Use a large spade drill bit to create a countersink hole in the pre-drilled pilot holes. Go a little larger than the diameter of the lag bolt head to give enough room for the socket to fasten the bolt flush with the material. If you don’t have a spade drill bit, you can also use other large diameter bits.

Should pilot hole be smaller than screw?

As a general rule of thumb, your pilot hole should be slightly smaller than the diameter of your screw. This will remove as much material as possible, which will reduce the likelihood of splitting, but will still leave enough material for the screw’s threads to grip into.

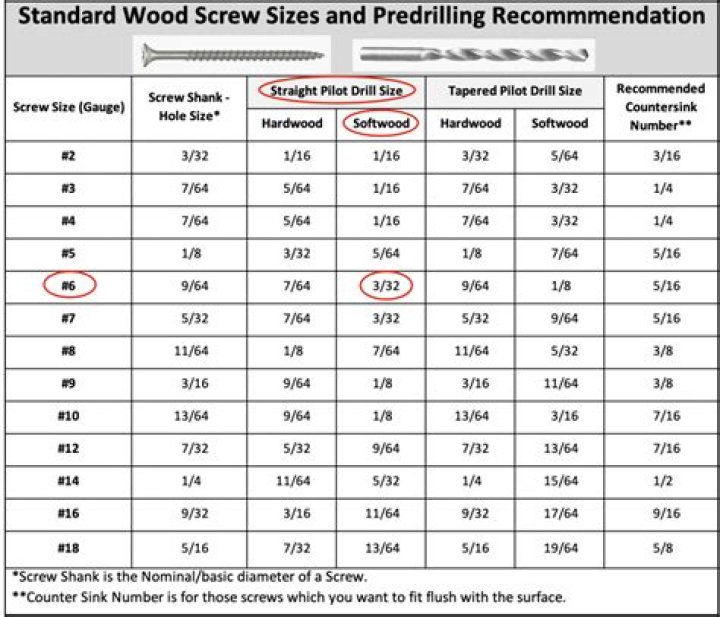

How big a pilot hole should I drill?

As a general rule, a pilot hole should be the same diameter as the root of the screw (the center core just below the threads). This allows the bulk of a screw to enter a board without splitting the grain, yet still allow the threads to do their work of pulling two boards together to form a joint.

How do I know what size lag screw to get?

Select a lag bolt that’s 1/4 inch shorter than the accumulated width of the two pieces. In most instances 5/16-inch-diameter lag bolts are sufficient. For larger or heavy-duty joints use a 3/8-inch-diameter or bigger lag bolt.

What is the difference between a lag bolt and a lag screw?

What is the difference between a lag bolt and a lag screw? In practice, there is no difference in the terms. They are used interchangeably to refer to the same fastener. Technically speaking, lags should be referred to as screws, not bolts.

How do you screw in a lag bolt?

To install a lag screw, first you have to align the materials you’re going to screw together. When they’re lined up, clamp them together so they stay in place. Then, using a bit with a slightly smaller diameter than your lag screw, drill a hole all the way through the materials where you want the screw to go.

Do I need to pre drill lag screw?

Normal wood screws thread as they enter the wood, where lag screws require a hole to be drilled first. Lag screws also use a nut to add extra strength and security to help hold things together. Used for intense load applications, lag screws can support a much heavier load than the average sheet metal or wood screw.

Do lag bolts weaken studs?

This perpendicular bean gives the threads the full thickness of a stud to screw into as it would in a residential wall. My results were as follows: Traditional lag bolt easily stripped out the stud and lost traction.
