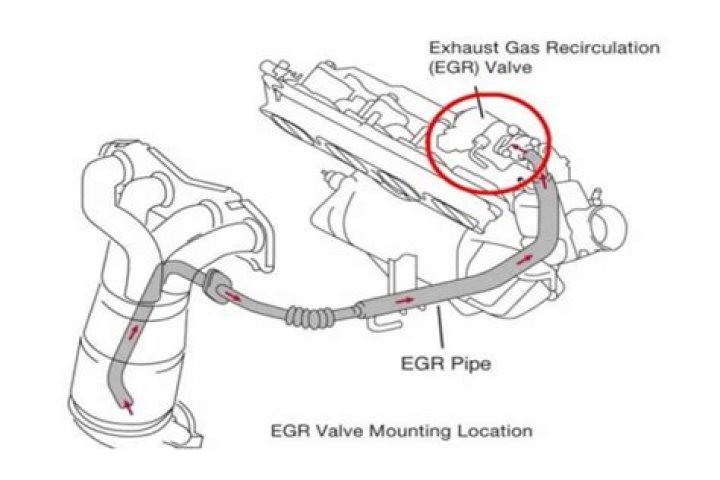

The EGR valve is usually located near or attached to the intake manifold, with a tube running to the exhaust manifold. There should also be a vacuum or electrical connector (or both) running to the valve which will need to be detached.

Where is the EGR valve located on a 2000 Chevy Silverado?

Open the hood and locate the EGR valve. The valve is directly in front of the oil filler neck on the passenger side of the vehicle. It is a small, metal circular valve with a wire coming from the top of it.

Where is the EGR valve located on a 2006 Chevy Silverado?

The 2006 Chevy silverado egr valve is on the intake manifold.

Does a 2006 Chevy Tahoe have an EGR valve?

There are no EGR valves on the small block truck engines in 2006 at allCalifornia emissions or not.

What are the symptoms of a faulty EGR valve?

What are the symptoms of a failing EGR valve?
Your engine has a rough idle. Your car has poor performance. You have increased fuel consumption. Your car frequently stalls when idling. You can smell fuel. Your engine management light stays on. Your car produces more emissions. You hear knocking noises coming from the engine.

Can I replace my EGR valve myself?

In most models, replacing an exhaust gas recirculation (EGR) valve is not difficult. You can do it in your garage in about an hour or two, depending on your particular system, using some common tools and a good solvent like carburetor cleaner.

How do I know if my EGR valve is working?

A vacuum-controlled EGR valve is easy to test with a hand-held vacuum pump (see the image). If the EGR valve opens and the vacuum holds for more than a minute, the EGR valve works. If a vacuum diaphragm inside the EGR valve is leaking, the vacuum will drop. Once the vacuum is released, the valve should close fully.

Can an EGR valve cause a misfire?

EGR valve can cause a misfire

A faulty EGR valve can cause a misfire all too often. It is usually caused by clogged passages inside your car’s intake. It will also diminish your vehicle’s power output.

How do you clean an EGR valve while driving?

EGR Valve Cleaning
Spray carbon deposits with EGR-valve or carburetor cleaner. Use a dull scraper and a pipe cleaning brush to scrub carbon buildup. To deal with rock-hard buildup, leave the valve soaking in the cleaning solution for a few minutes. Repeat step 3 to fight stubborn carbon deposits.

Where is the EGR valve on a 2008 Chevy Silverado?

The 2008 Chevy silverado egr valve is found at the back of the intake manifold near the firewall in the back of the engine bay.

Can you clean an EGR valve?

Spray the EGR valve cleaner onto the carbon deposits. Remove the carbon buildup with the use of a pipe cleaning brush and dull scraper. Wipe off the surface using a clean piece of cloth. If the valve is hard to clean using the pipe cleaning brush, consider soaking it in the cleaning solution for a few minutes.

What is the point of EGR delete?

An EGR delete kit is an aftermarket performance part that removes the EGR valve and prevents exhaust from being redirected back to the engine. Ultimately, this allows your vehicle to function as if it never had an EGR valve.

What does EGR stand for?

Exhaust gas recirculation (EGR) is an emission control technology allowing significant NOx emission reductions from most types of diesel engines: from light-duty engines through medium- and heavy-duty engine applications right up to low-speed, two-stroke marine engines.

Whats a EGR valve do?

It connects the exhaust manifold to the intake manifold and is controlled by either a vacuum or a built-in electric step motor. The function of the EGR valve is to control the flow of exhaust gas being recirculated depending on the engine load.
