From which direction does AutoCAD start measuring angles? 3 o’clock.

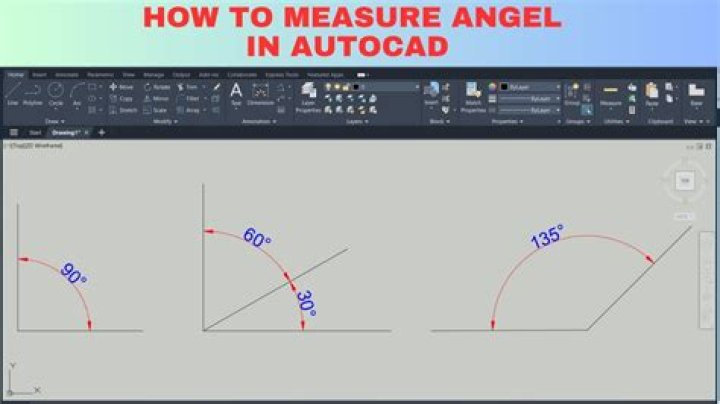

Which direction are angles measured in AutoCAD?

You can specify that positive values of angles are measured either clockwise or counterclockwise, and the direction of angle 0 (usually East or North). You can enter angles in grads, radians, or surveyor’s units or in degrees, minutes, and seconds.

Where is the origin of a drawing?

Defining the View Origin. By default, the origin of a drawing view is in the center of its outline. You can reset the origin of a drawing view by parametrically referencing model geometry or defining a location on the drawing sheet.

What does WCS mean in AutoCAD?

Understand the World Coordinate System (WCS)

All objects in a drawing are defined by their coordinates in the World Coordinate System (WCS), a permanently fixed Cartesian coordinate system. The UCS is initially coincident with the WCS in new drawings.

How is a right angle?

If you’ve heard the term “right angle” in geometry class and wondered, “What is a right angle?” you’ve come to the right place. A right angle is 90 degrees. An acute angle is less than 90 degrees. An obtuse angle is more than 90 degrees.

When using the rotate tool the angle of rotation is in the following direction?

Rotation by Angle

The positive angle value will rotate the object in the counter-clockwise direction, while the negative angle value will rotate the object in a clockwise direction. The angle degree can be specified from 0 to 360.

How do I set WCS in AutoCAD?

Use the UCS command and select World. On the View tab of the Ribbon, go to the Coordinates panel and select World from the drop-down menu. Under the ViewCube expand the coordinate system drop down and select WCS. On the command line in AutoCAD, type PLAN and then World.

Are UCS and WCS interdependent?

In a drawing, by default WCS and UCS have the same orientation. When you create and modify objects in a 3D environment, you can move and reorient the UCS in 3D modeling view. Use the right-hand rule to determine the positive axis direction of the Z axis.
