What is the significance of capacitors in a Maxwell bridge? Explanation: In a Maxwell inductance capacitance bridge, the capacitors are cheaper when compared to a stable and accurate standard value of inductors.

Which of the following bridge is used for measurement of capacitance?

Wien’s bridge is used for precision measurement of capacitance in terms of resistance and frequency.

What is Maxwell capacitance?

The Maxwell capacitance matrix describes a relation between the charge of the ith conductor to the voltages of all conductors in the system. The Maxwell capacitance matrix coefficient could be determined by measuring the charge on conductor 1, when only the potential and all other electrodes are grounded.

What is the advantage of Maxwell bridge Mcq?

Explanation: The given figure is Maxwell’s Bridge because it consists of two inductors. It is also used to measure the inductance of the inductor. Explanation: Carey 鈥 Foster slide-wire is suited for the comparison of resistances which are nearly equal.

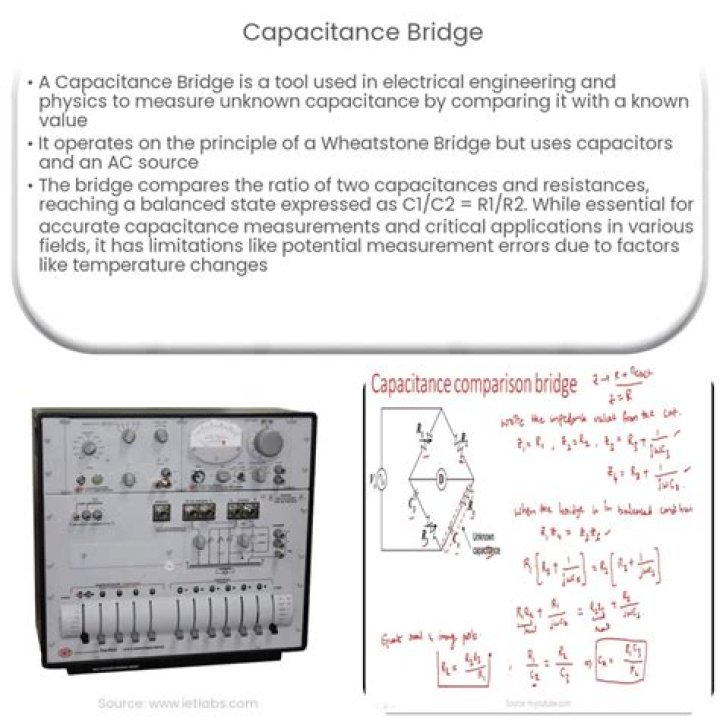

What is capacitive bridge?

Capacitive Wheatstone Bridge. A Capacitive Wheatstone bridge can be used as a sensor signal conditioning circuit that converts its impedance, at a specific frequency, to a voltage. The circuit below produces a change in differential voltage as a function of the capacitance change.

What is capacitor dissipation factor?

The dissipation factor of a capacitor is the power loss when AC is applied through the capacitor. This power is either absorbed by the dielectric material or internal/external resistance. Externally, the leads, pads, and solder all lead to an increase in resistance.

What are the limitations of Maxwell bridge?

The disadvantages of a Maxwell Bridge are: The variable standard capacitor is very expensive. The bridge is limited to measurement of low quality coils (1

What is capacitance and explain about capacitor?

The capacitance of a capacitor is defined as the ratio of the maximum charge that can be stored in a capacitor to the applied voltage across its plates. In other words, capacitance is the largest amount of charge per volt that can be stored on the device: (4.1.1)

What is the capacitor symbol?

There are two commonly used capacitor symbols. One symbol represents a polarized (usually electrolytic or tantalum) capacitor, and the other is for non-polarized caps. In each case there are two terminals, running perpendicularly into plates. The symbol with one curved plate indicates that the capacitor is polarized.

What is capacitor formula?

The basic formula governing capacitors is: charge = capacitance x voltage. or. Q = C x V. We measure capacitance in farads, which is the capacitance that stores one coulomb (defined as the amount of charge transported by one ampere in one second) of charge per one volt.

What is the purpose of Owen’s bridge Mcq?

Wien’s bridge is used for precision measurement of capacitance in resistance and frequency. It was also used to measure audio frequencies.

Which of the following type of fixed standard capacitor is used in Schering bridge?

The fixed standard capacitor c2 has compressed gas which works as dielectric therefore dissipation factor can be taken as zero for compressed air. Earthed screens are placed between high and low arms of the bridge to prevent errors caused due to inter capacitance.

Which one of the following is used to measure quality of capacitor?

Q meter is an instrument that is designed to measure the value of quality factor directly and it is useful in measuring the characteristics of coils and capacitors.

What is Q factor in Maxwell bridge?

A Maxwell bridge is a modification to a Wheatstone bridge used to measure an unknown inductance (usually of low Q value) in terms of calibrated resistance and inductance or resistance and capacitance.

What is a null detector?

Overview. Historically, analog null detectors or null meters have been used in electrical metrology to measure small voltage differences between two points or to detect a zero current condition where the voltages at two points are the same.

Is higher dissipation factor better?

Dissipation factor indicates the inefficiency of material to hold energy or behave as an insulating material. The lower the dissipation factor, the more efficient is the insulator system.

Does a capacitor dissipate power?

Capacitors are widely used as parts of electrical circuits in many common electrical devices. Unlike a resistor, an ideal capacitor does not dissipate energy, although real-life capacitors do dissipate a small amount (see Non-ideal behavior). However, there is a flow of charge through the source circuit.

What is capacitor DF?

Simply stated, DF is a measure of power lost traveling through a capacitor. This loss is mainly in the form of heat, which compounds the loss as the resulting temperature rise can cause additional problems such as: 鈥 Diminished life of the capacitor and other circuit elements near it.
