Basically, door springs can either wind to the left or to the right. Right-hand winding springs wind in a clockwise manner with the end wire on the right, while left-hand winding springs go anticlockwise with their end wire on the left.

How do I know if my torsion spring is left or right wing?

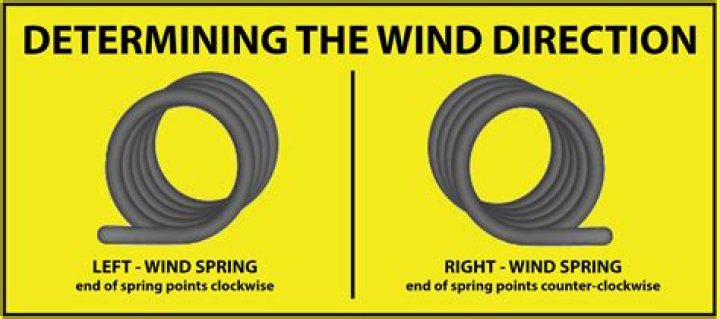

Look at the end of the spring to determine the wind direction. If the end of the spring points in the clockwise direction it is left-wound and if the end of the spring points in the counter-clockwise direction, it is right-wound.

How many turns do you wind a torsion spring?

A rule of thumb with springs is that four quarter turns equals a full revolution and the spring needs to be tightened a full revolution for every foot of door height (e.g. 7-1/2 foot door = 7 revolutions +2 (30 quarter turns).

Do torsion springs work in both directions?

Depending on the application, a torsion springs can be designed to work in a clockwise or counter-clockwise rotation, thus determining the direction of the wind.

Which way do you turn a left torsion spring?

The right hand winding springs are wound in a clockwise direction. Thus, they have their end of wire on the right side. On the other hand, a left hand winding spring is wound in an anti-clockwise direction, and has its end of wire on the left side.

How do you adjust the springs on a garage door?

Here are the steps using which you can adjust torsion springs:
Step 1: Gather the Supplies. Step 2: Open the garage door. Step 3: Find the winding cone. Step 4: Loosen the screws on the cone. Step 5: Adjust the tension. Step 6: Stretch the spring. Step 7: Tighten the set screws.

How does a garage door torsion spring work?

Torsion springs are typically mounted horizontally above the door opening. As the door comes down, cables that are attached to the bottom corners of the door cause the springs to wind up and this winding creates stored energy. When the door is opened, the springs unwind and the energy helps lift the garage door.

Why are two springs wounded in opposite direction?

Torsion springs are always loaded in direction of winding so that it gives good spring back effect and desired force. If loaded in opposite direction, it tends to unwind the spring turns and deforms plastically losing its initial stiffness characteristics.

Which way do you wind torsion springs?

For a correct solution, a right-hand wound torsion spring should be mounted on one side, and a left-hand wound one on the other. A torsion spring must always be loaded in the direction of the spring wire so the spring body closes.
