If the brushroll is sticking, it will cause too much friction and put too much strain on the belt. Remove the brushroll and clean all hair, string, and lint from the brushroll bearings. If the vacuum cleaner brush still doesn’t spin after you clean the brushroll, consider replacing the brushroll.

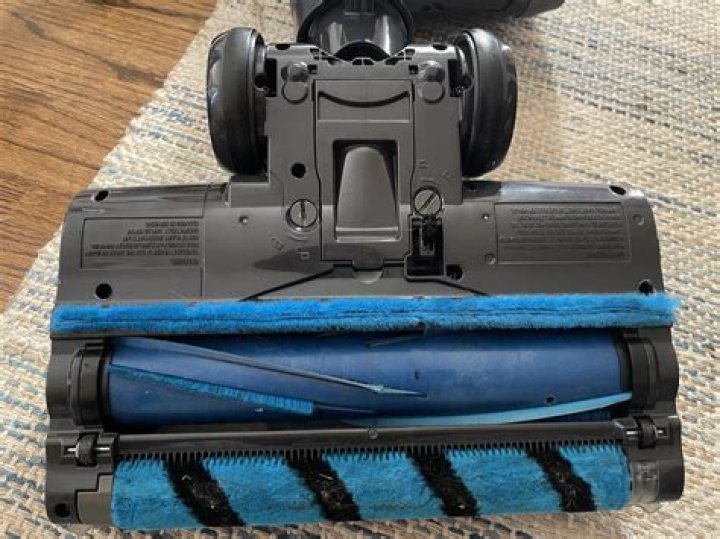

Why is the brush roll not spinning?

A broken drive belt, damaged brush roll, jammed brush roll bearings, tripped brush roll motor overload, failed brush roll motor or a wiring failure in the wand or nozzle can prevent the brush roll from spinning. Check the condition of the drive belt and replace the belt if it’s worn or broken.

How do you fix a Dirt Devil brush roll?

No parts specified.
Step 1 The Brush Roller. Lay the vacuum so it’s facing up. Use a Phillips #0 screwdriver to remove each screw. After removing all of the screws pull the vacuum’s black cover up to remove it. Pull the brush roll up to remove from the black cover. Replace the brush roll with a new brush roll.

How do you take apart a Dirt Devil stick?

Pull the two sections of the handle apart, using your hands. Rotate the Dirt Devil so that the release button near the bottom is facing up. Press the button with one hand while gripping the dirt cup connected to the bottom of the vacuum with the other. Pull the dirt cup off the vacuum.

Why is my Dirt Devil not picking up?

Common solutions for: Dirt Devil Vacuum cleaner won’t pick up, no suction. The air filter traps particles as the air travels through the vacuum cleaner. If the filter is clogged, the vacuum cleaner will not have proper suction. If the filter is clogged, the vacuum cleaner will not have proper suction.

How do you clean a Dirt Devil Power Stick Lite?

GRASP FILTER AND GENTLY PULL OUT FILTER BASKET. SHAKE DIRT AND DEBRIS OUT OF DIRT CUP. REMOVE THE FILTER FROM THE FILTER BASKET. BRUSH THE DUST AND DIRT OFF THE FILTER, OR SHAKE THE FILTER INSIDE OF THE WASTEBASKET.

How do you get hair out of a Dirt Devil vacuum?

Set the screws aside and lift off the base plate, then remove the nozzle guard. Lift up one side and then the other to remove the brush roll from the vacuum cleaner. Search for the cause of the obstruction, and use a pair of scissors to cut away any strings, ribbons, fiber or hair that are wound around the brush.

Is the brush supposed to spin on a vacuum?

If the vacuum brush roll does not spin, then you are left with no agitation or sweeping of your floor and carpets. As a result the vacuum will not pick up dirt and debris up off the floor.

How do you test a vacuum brush motor?

Inspecting the Vacuum Commutator for Motor Brush Problems

Test that by turning the motor off and pushing on the center shaft, the armature. If it has any play, besides spinning, then replace the motor. If solid then replace the brushes – motor brush replacement instructions.

How do I know if my vacuum belt is bad?

Read on to find out.
Your Vacuum Has Suddenly Gotten Extra Noisy. Let’s face it – no vacuum cleaner is exactly quiet, but when your faithful upright suddenly sounds like a jet engine, it could very well be your belt is about to break. Your Suction Power has Slipped. Your Vacuum Cleaner is Leaving a Trail. Conclusion.
